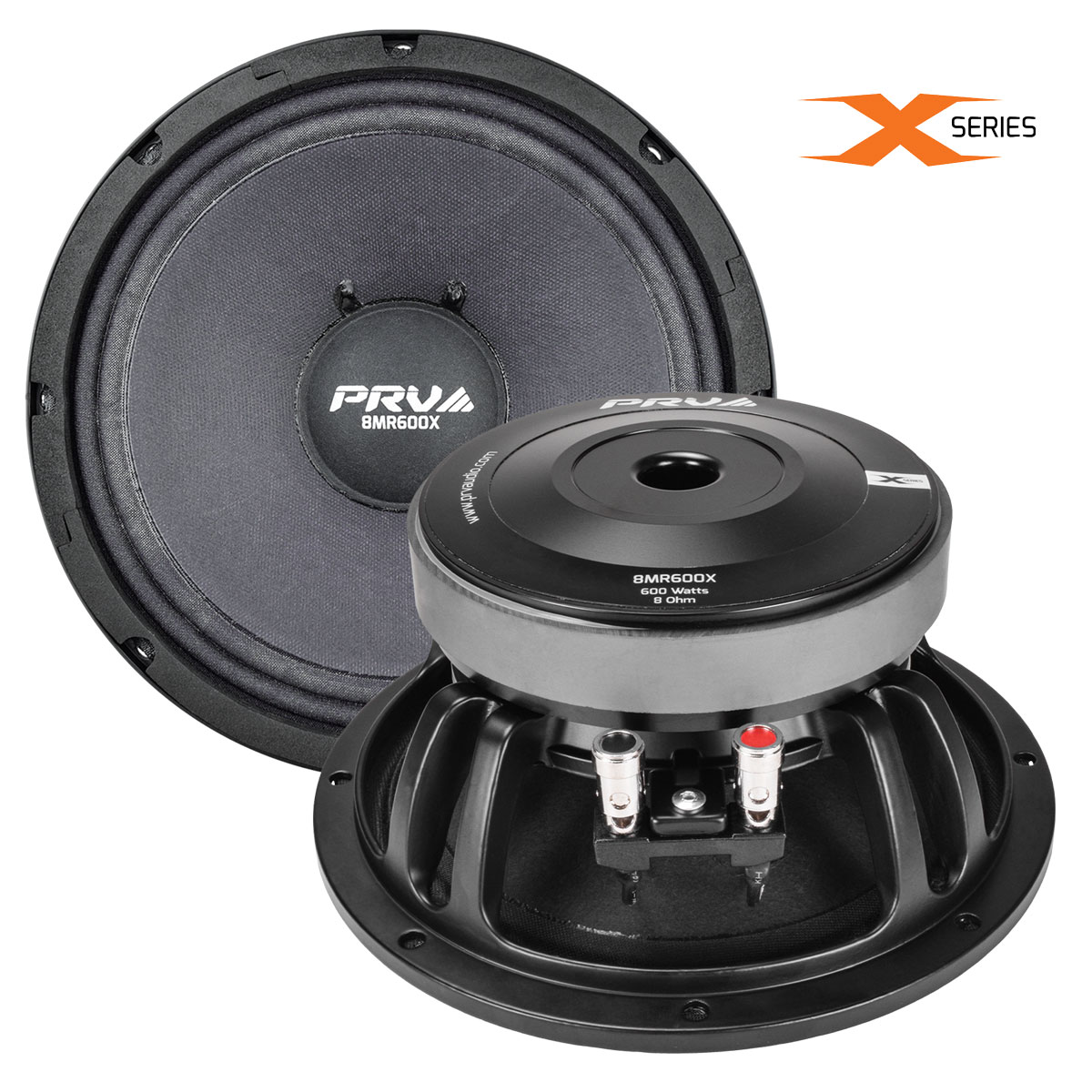

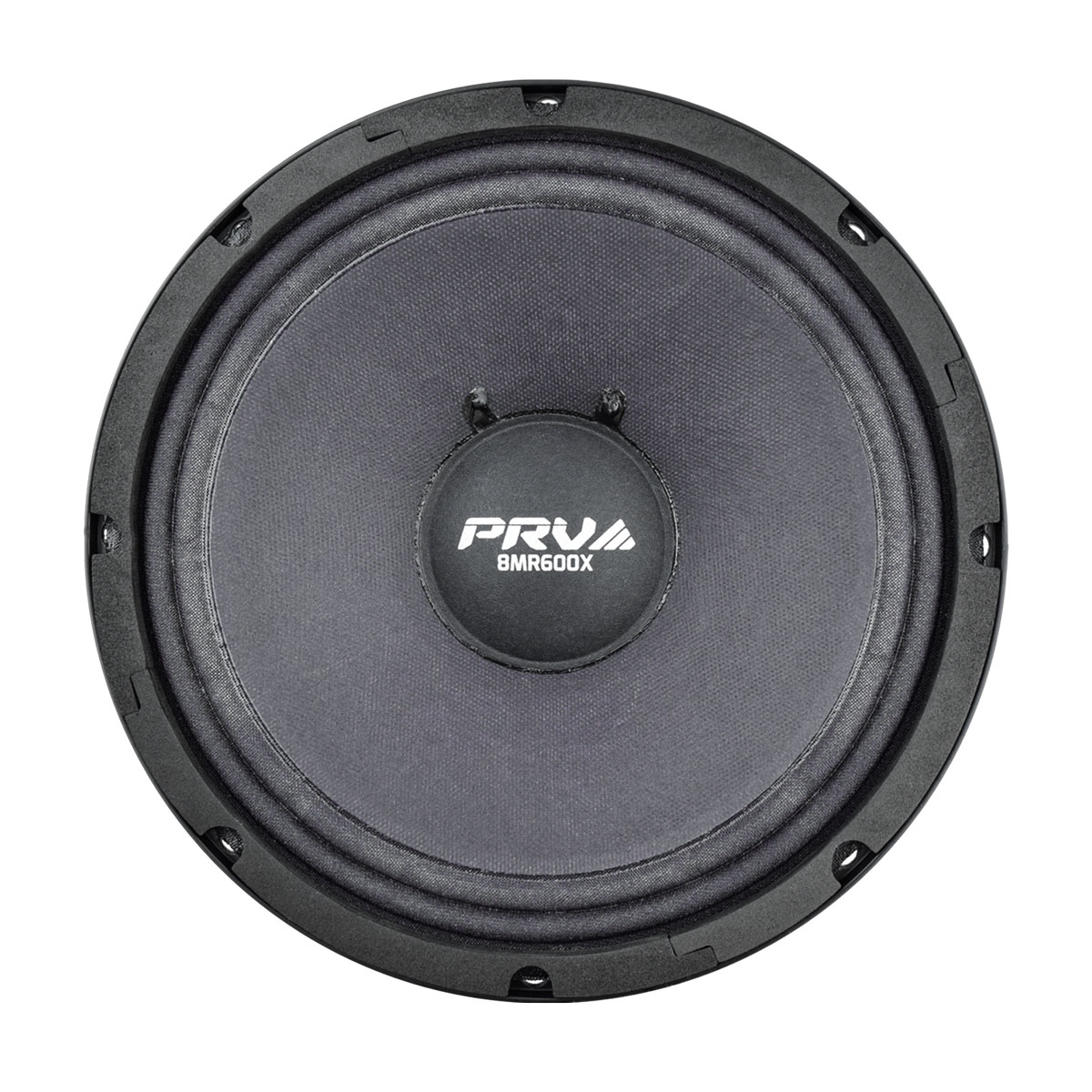

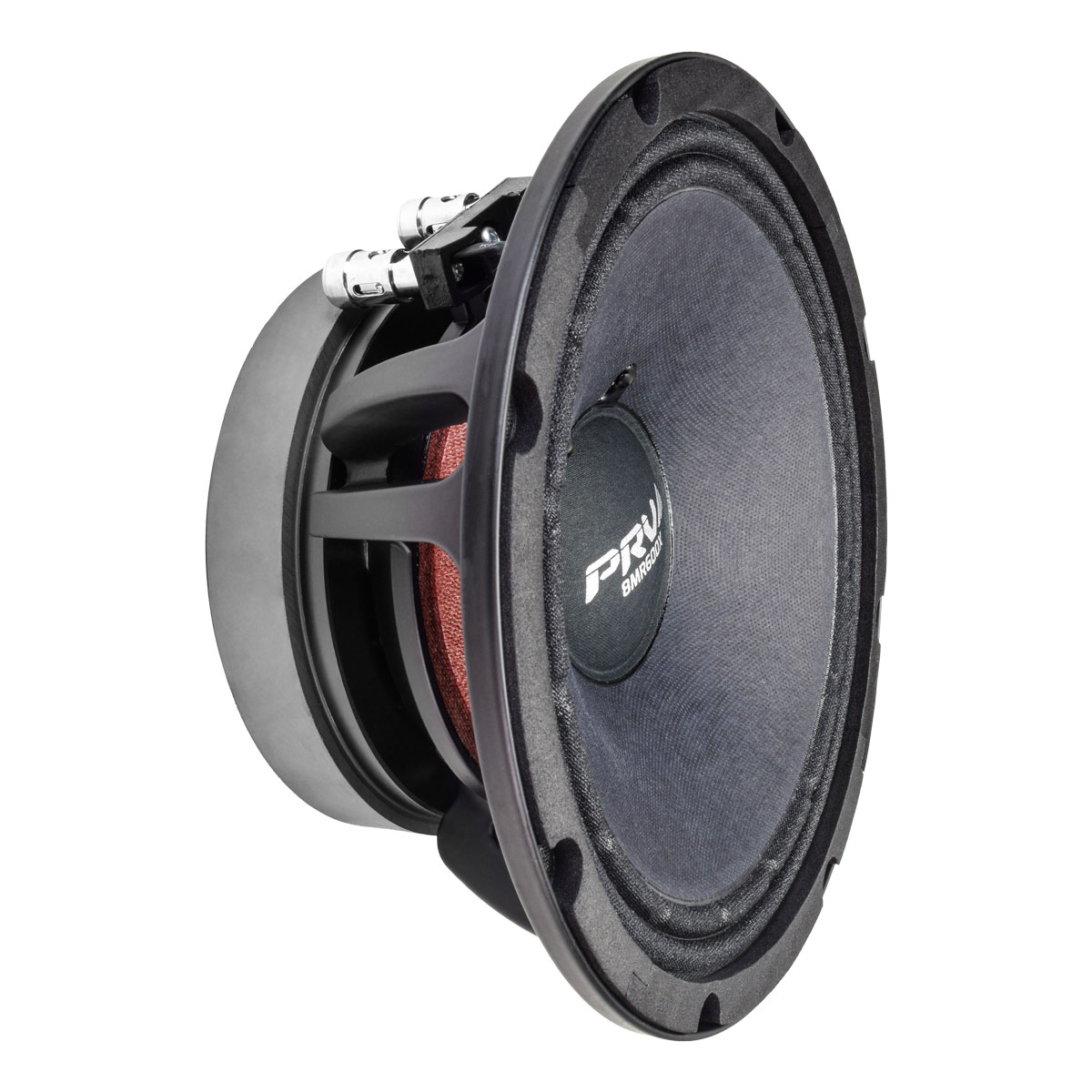

PRV 8MR600 (Côté)
General Specifications:
- Nominal Diameter: 8 inches (203 mm)
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 300 Watts
- Program Power: 600 Watts
- Sensitivity (2.83V at 1m): 98 dB
- Frequency Response (-10dB): 85 – 8,500 Hz
- Recommended Hi Pass Crossover: 160 Hz (12dB per Octave Crossover, for full power handling)
- Speaker Type: Single Speaker
- Mounting Type: Flush Mount
- Recommended Uses: Pro Audio, Musical instrument speaker systems

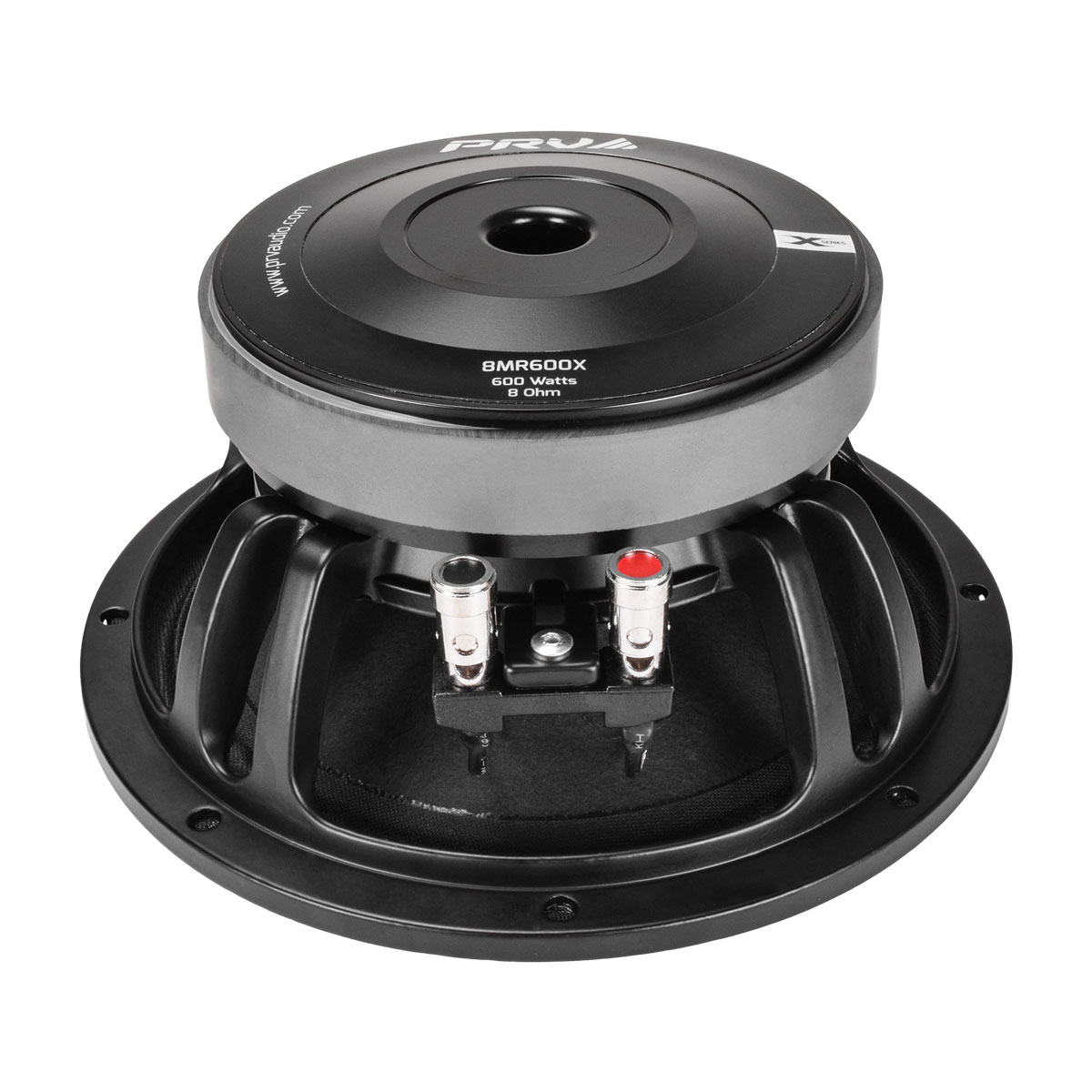

Voice Coil & Magnet:
- Voice Coil Diameter: 2.0 inches (51 mm)
- Voice Coil Wire: CCAW (Copper Clad Aluminum Wire)
- Voice Coil Winding Depth: 14.5 mm
- Former Material: Polyimide
- Magnetic Gap Depth: 8.0 mm
- Frame Material: Die cast aluminum
Thiele-Small Parameters (Typical values, can vary slightly between revisions):
- Equivalent Volume (Vas): 19.99 L
- Excursion (Xmax): 5.25 mm (calculated as (Voice coil winding depth – Magnetic Gap depth) / 2 + Magnetic Gap Depth / 4)
- Free Air Resonance (Fs): 76.90 Hz
- Mechanical Factor (Qms): 7.07
- Electrical Factor (Qes): 0.43
- Total Factor (Qts): 0.40
- Cone Area (Sd): 241 cm²
- Mechanical Mass (Mms): 17.31 g
- Bl Factor (BL): 10.54 Tm
- DC Resistance (Re): 5.7 Ohms
- Inductance (Le): 0.49 mH at 1 kHz
- Mechanical Mass Without Air (Mmd): 15.19 g
- Mechanical Compliance (Cms): 0.247 mm/N
Physical Dimensions:
- Overall Diameter: 8.21 inches (208.5 mm)
- Front Mount Baffle Cutout: 7.29 inches (185.3 mm)
- Mounting Depth: 3.75 inches (95.5 mm)
- Overall Depth: 4.03 inches (102.5 mm)
- Net Weight: 7.04 lbs (3.20 kg)
- Shipping Weight: 11.90 lbs (3.45 kg)
- Carton Dimensions (W x L x H): 8.85″ x 8.85″ x 4.92″ (225 x 225 x 125 mm)
