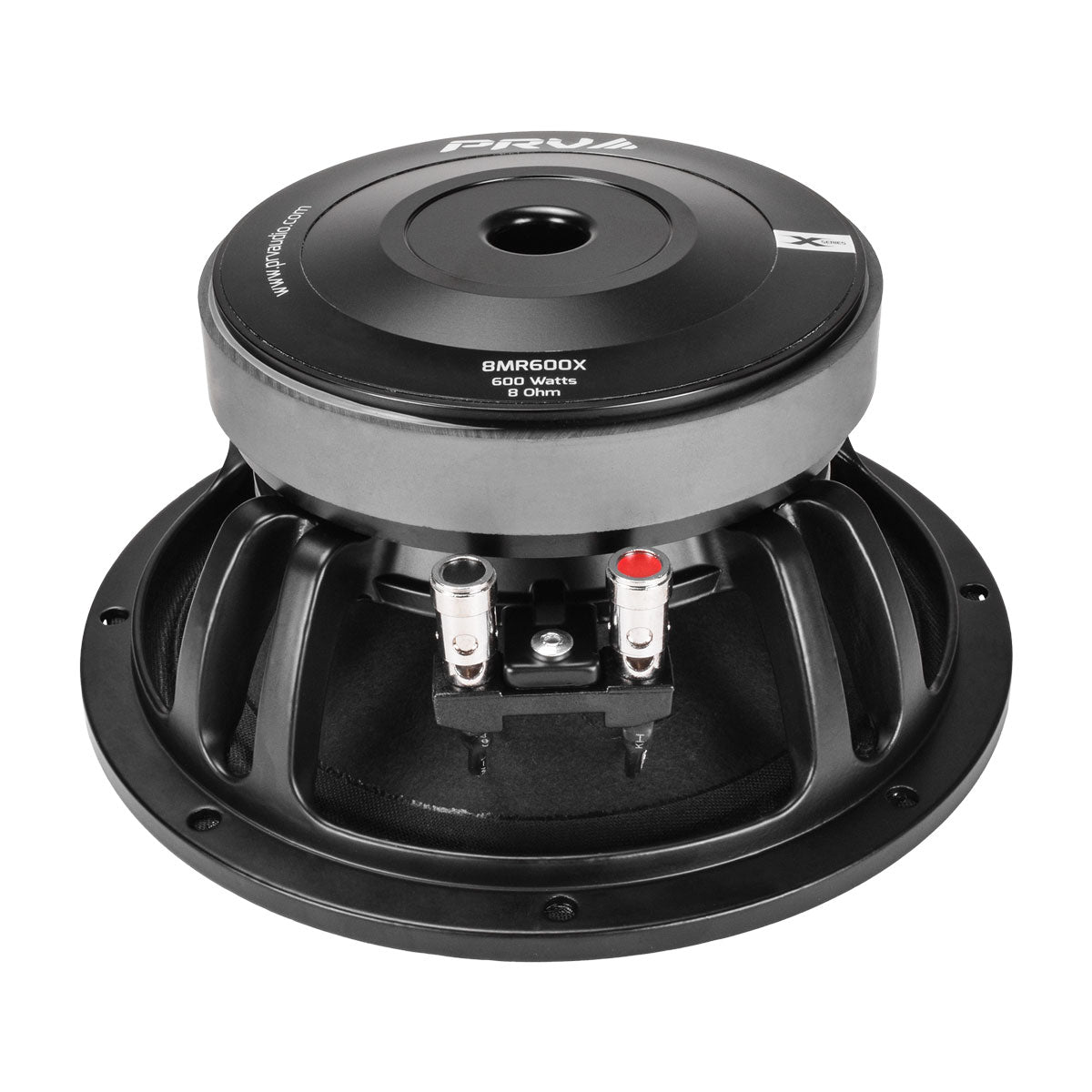

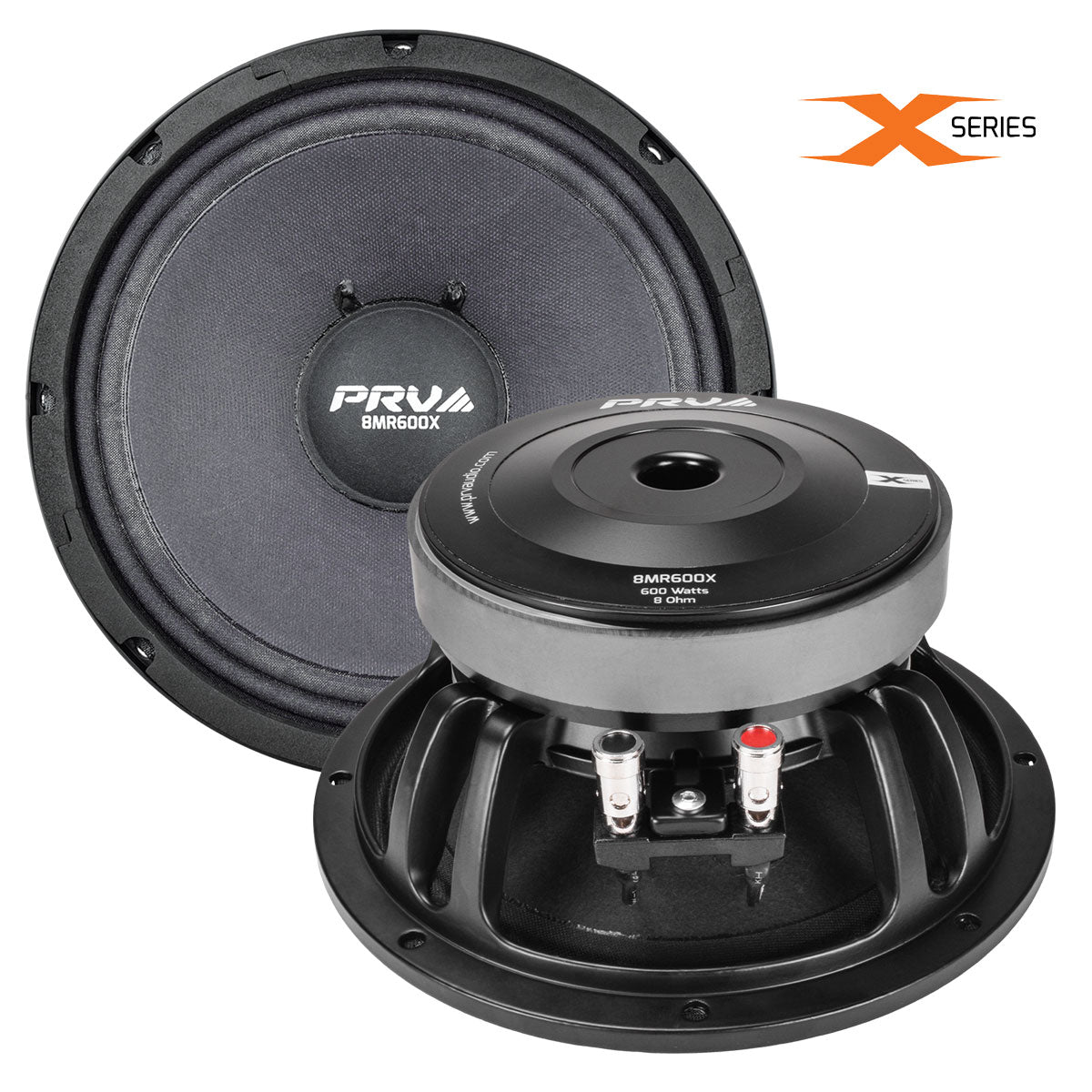

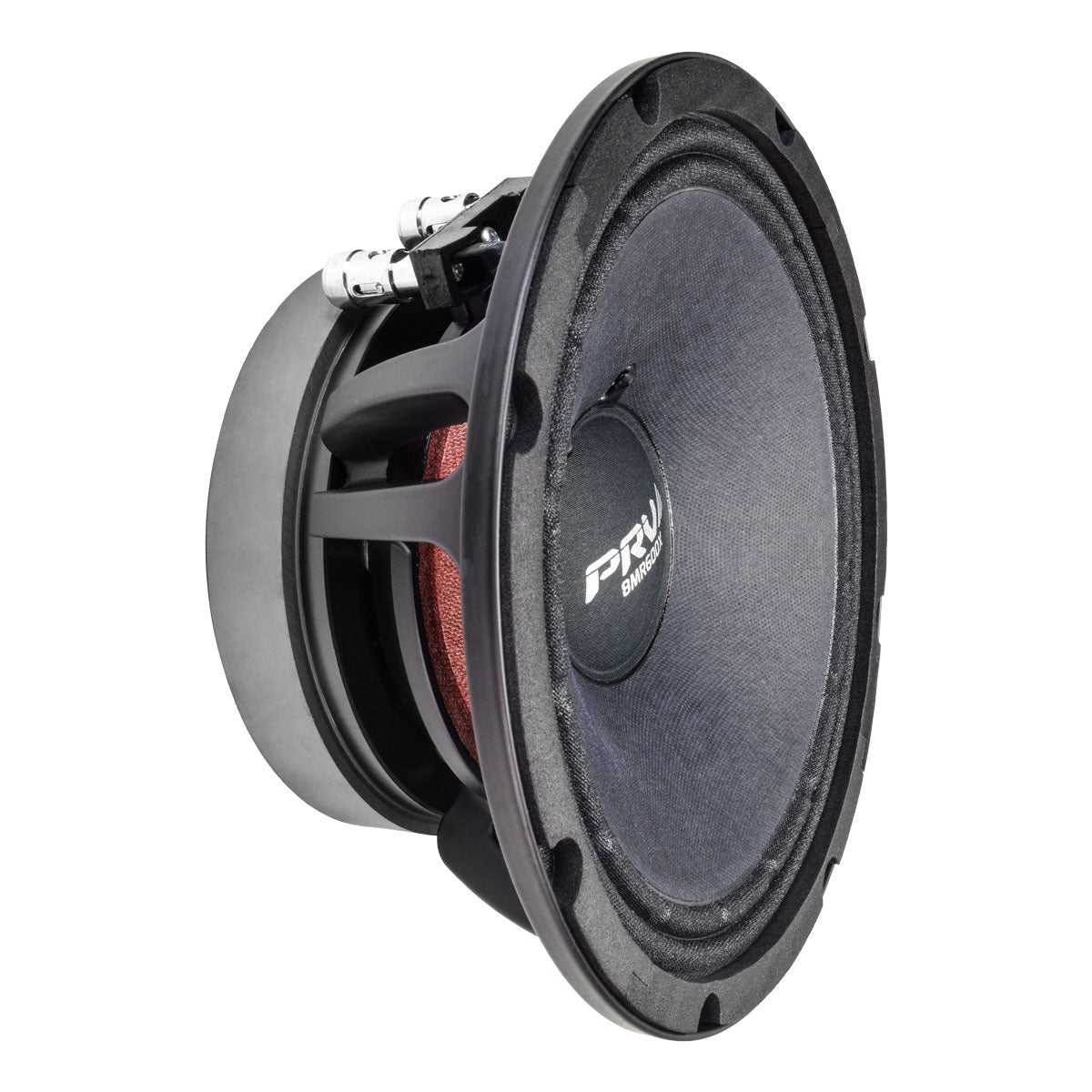

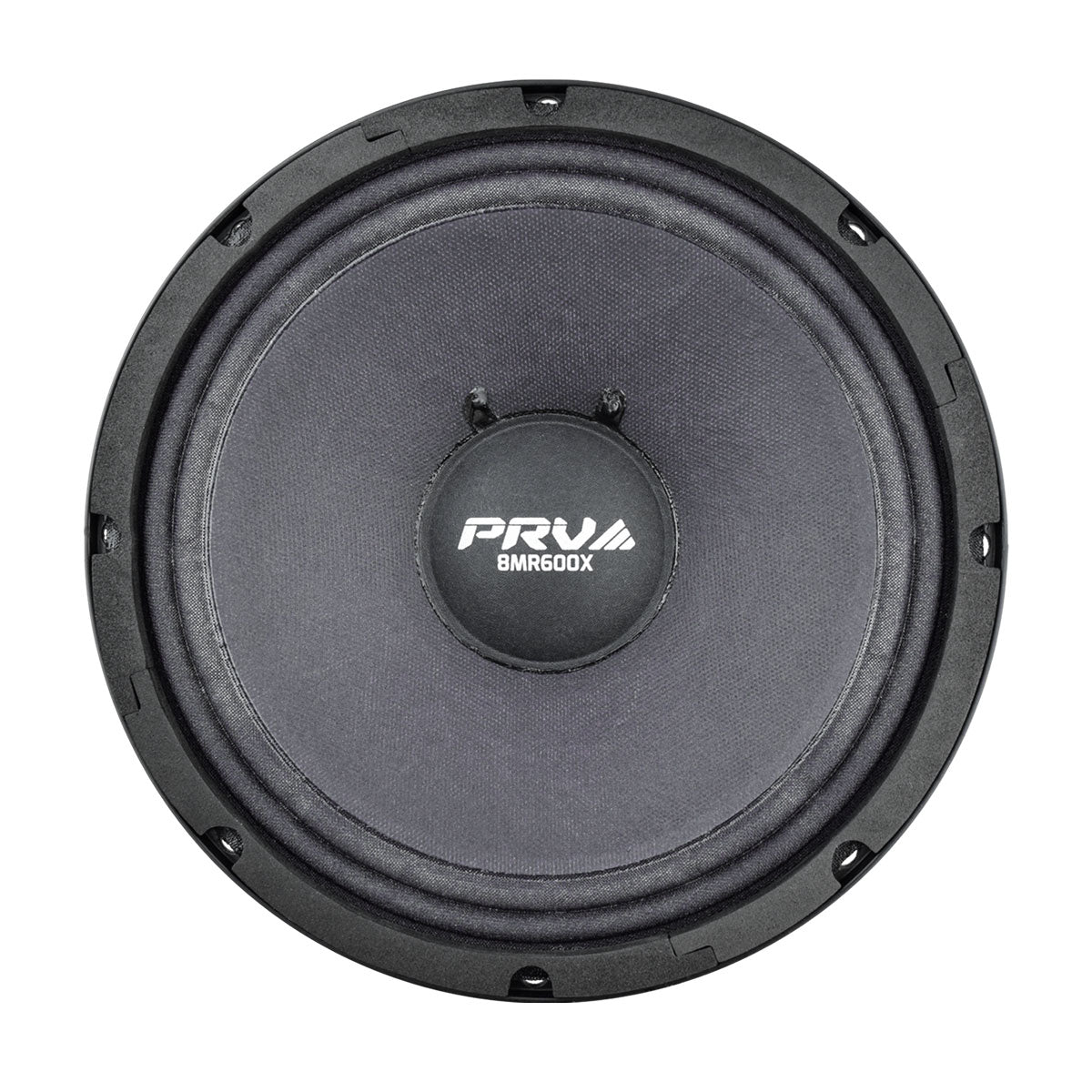

PRV 8MR600 (Côté)

PRV 8MR600 (Côté)

General Specifications:

• Nominal Diameter: 8 inches (203 mm)
• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 300 Watts
• Program Power: 600 Watts
• Sensitivity (2.83V at 1m): 98 dB
• Frequency Response (-10dB): 85 – 8,500 Hz
• Recommended Hi Pass Crossover: 160 Hz (12dB per Octave Crossover, for full power handling)
• Speaker Type: Single Speaker
• Mounting Type: Flush Mount
• Recommended Uses: Pro Audio, Musical instrument speaker systems

Voice Coil & Magnet:

• Voice Coil Diameter: 2.0 inches (51 mm)
• Voice Coil Wire: CCAW (Copper Clad Aluminum Wire)
• Voice Coil Winding Depth: 14.5 mm
• Former Material: Polyimide
• Magnetic Gap Depth: 8.0 mm
• Frame Material: Die cast aluminum

Thiele-Small Parameters (Typical values, can vary slightly between revisions):

• Equivalent Volume (Vas): 19.99 L
• Excursion (Xmax): 5.25 mm (calculated as (Voice coil winding depth - Magnetic Gap depth) / 2 + Magnetic Gap Depth / 4)
• Free Air Resonance (Fs): 76.90 Hz
• Mechanical Factor (Qms): 7.07
• Electrical Factor (Qes): 0.43
• Total Factor (Qts): 0.40
• Cone Area (Sd): 241 cm²
• Mechanical Mass (Mms): 17.31 g
• Bl Factor (BL): 10.54 Tm
• DC Resistance (Re): 5.7 Ohms
• Inductance (Le): 0.49 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 15.19 g
• Mechanical Compliance (Cms): 0.247 mm/N

Physical Dimensions:

• Overall Diameter: 8.21 inches (208.5 mm)
• Front Mount Baffle Cutout: 7.29 inches (185.3 mm)
• Mounting Depth: 3.75 inches (95.5 mm)
• Overall Depth: 4.03 inches (102.5 mm)
• Net Weight: 7.04 lbs (3.20 kg)
• Shipping Weight: 11.90 lbs (3.45 kg)
• Carton Dimensions (W x L x H): 8.85" x 8.85" x 4.92" (225 x 225 x 125 mm)
